I wanna update phoenix award bios v6.00pg solution; Solved How to update Phoenix Award Bios v6.00PG solution; Driver phoenix award bios v6.00pg Forum. Part 2, step 12 is funny: cbrom215 bios+slp.BIN /acpitbl acpitbl.bin.
- Never touch a running system! This golden rule has its reason and says simply: Don't update the BIOS when your PC is running smoothly! Only when your BIOS has serious.
- BIOS updates must be obtained from the computer or motherboard manufacturer. The BIOS as supplied by Phoenix must be customized by the computer or motherboard.
- Como Configurar boot (BIOS) Para fazer uma Formata. Tutoriais 7008 31,125 views.
Bios Phoenix - You.
Improved Way to Add SLIC (SLP 2. Table into BIOS ACPI to Activate Windows Vista OEM « My Digital Life.
Microsoft is using SLP 2. System Locked Preinstallation) technology for activation process of OEM (Original Equipment Manufacturer) edition of Windows Vista on branded PC. One of the requirement to activate Windows Vista with OEM product key is the existance of SLP public key and SLP marker which stored in SLIC table in ACPI. If you have older motherboard with no updated BIOS with SLIC table, the BIOS has to be patched or hacked to add in SLIC table plus OEMID and OEMTable. ID. The original instruction to add in SLIC information involves method to replace an existing ACPI description table, which may affect some functionalities of computer. Now there is improved way to actually add in SLIC table into BIOS ACPI module, without replacing any existing tables. The new improved procedure may also works on older motherboards with BIOS that previously thought to be unable to edit or alter, or those BIOS that has to replace the APIC table which may force user to reinstall Windows operating system as existing OS fails (see step 8 of original article).

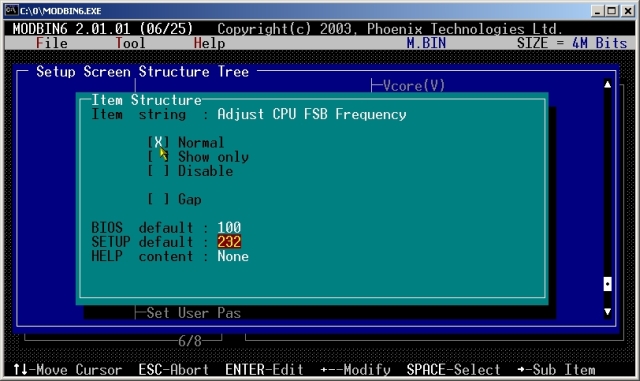

As with the original guide, the following tutorial is based on Award BIOS on DFI CA6. TC motherboard. As usual the tools or utilities that needed include: CBROM 2. CBROM 2. 1. 9 – A tool to add, edit or exchange the components of an Award Modular BIOS. The tool is needed to edit and exchange ACPI digital byte- code table. MODBIN6 2. 0. 1. 0. Used to modify the Award Modular BIOS strings or options. The tool is needed to modify Award core BIOS module, as CBROM is unable to edit the BIOS module.
Win. HEX – A popular HEX editor used to modify content in the ACPI table. HWDirect – An advanced low- level hardware register access software tool for Windows, used to dump the memory contents. New: Virtual BIOS simulator for Windows Vista OEM activation without actually modify BIOS. If you need help in modifying BIOS for activating Vista, check out this thread. Part 1 – Modify BIOS to Add in SLIC Table. Create a temporary folder (Vista or BIOS is you like) at root directory (C: \)Download CBROM 2. MODBIN6 2. 0. 1. 0.
Win. HEX with download links above, and place them in the temporary folder. The easy way is to download the corresponding BIOS file which intended for flash BIOS upgrade from motherboard manufacturers’ websites. Run modbin. 6. exe by double clicking on it.
Select the BIOS image file at the MODBIN6 menu. Now go to the File Explorer for the temporary folder, you will notice that some more files have been created. Among them, ORIGINAL. BIN is the one that needs to be modify. If you only find RSDTFACPDSDTFACS string, there is no ACPI tables that you can changed, so the only way is to add in SLIC instead of replacing. Anyway, note down and remember the reference address to the starting location of ACPI descriptor tables string (example in this case is D0.
E0). In this case, there are 2 options. There is 4 or more blank (0. HEX value) in front of RSDT. In this case, move the whole string of RSDTFACPDSDT forward 4 position (left FACS intact unmoved). After moving, add in SLIC at the blank space leftover by moved string (should be right after moved string).
Note down and remember the starting position of ACPI index string in HEX, i. Search and locate a blank or free block in BIOS looks something like this, (example below show the free block starting from address of 0. E1. E0), which has a block of empty unused value that can be written. Then, copy and paste and whole ACPI index string with SLIC (RSTDFACPDSDTSLIC with HEX value of 5. C4. 94. 3 to the free blank region in the BIOS found above. Note that you have to “paste”, which mean overwrite the existing “FF” code instead of add or insert, as no new digits or characters should be added.
You can leave the existing ACPI string (RSTD. Note down and remember the starting location of ACPI index string in HEX, i. E1. E0 in this case. ACPI tables index string in new BIOS location (for example)As the starting reference address or namespace location for ACPI tables index has been changed, so the reference pointer to the ACPI location has to be changed too. Go back to the original position of ACPI string (in this example is at D0. E0). From there, search for HEX string of E0.
D0 (note the reserved position for D0. Madhumati Hindi Movie Songs Free Download. E0 when called in pointer).
If your system has more ACPI tables, this value will be different (B9. B9. 04 for 5 tables and so on). Change it to B9. 04 or your value added by 1.
